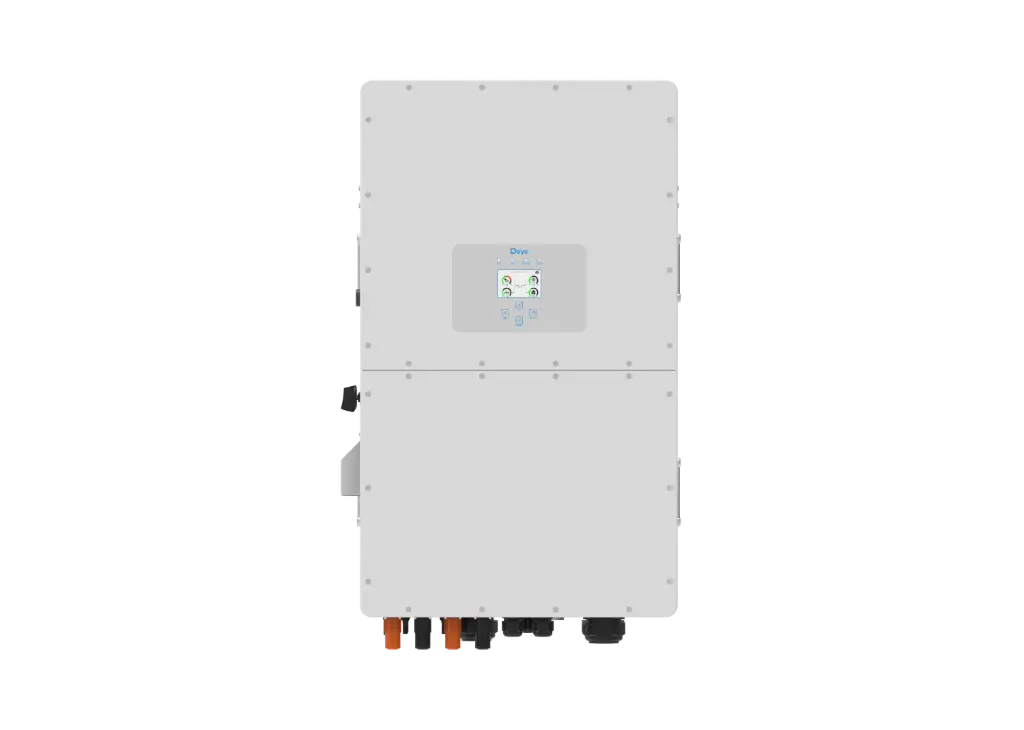

Deye SUN-40K-SG01HP3-AU-BM4 40kW Three-Phase High-Voltage Hybrid Inverter – Commercial & Industrial
The Deye SUN-40K-SG01HP3-AU-BM4 is a powerful 40 kW three-phase high-voltage hybrid inverter engineered for commercial and industrial (C&I) energy storage applications in Australia. Designed for larger-scale solar + battery systems, it delivers high efficiency, flexible high-voltage battery support and robust performance for businesses, factories, warehouses and commercial buildings.
Key Features & Benefits
- 40 kW three-phase commercial hybrid inverter
- High-voltage battery support (160–800 V)
- Dual independent battery inputs (50 A + 50 A)
- 4 × MPPT trackers for maximum solar yield
- Max continuous AC passthrough: 200 A
- Supports diesel generator input
- Parallel operation for larger systems
- IP65 outdoor-rated enclosure
- Smart monitoring and control via Deye Cloud App
- Ideal for commercial & industrial energy storage projects
Technical Highlights
Parameter | Value |
|---|---|
Rated AC Output Power | 40 000 W |
Max AC Output Power | 44 000 W |
Battery Voltage Range | 160 – 800 V |
Max Charge/Discharge Current | 50 A + 50 A |
Max Continuous AC Passthrough | 200 A |
Max PV Input Power | 52 000 W |
Max PV Input Voltage | 1000 V |
No. of MPPTs / Strings | 4 / 2+2+2+2 |
Max Efficiency | 97.60% |
Euro Efficiency | 97.00% |
Grid Connection | 3L + N + PE, 230/400 V |
Protection Rating | IP65 |
A robust commercial-grade solution for businesses seeking high-power hybrid solar and storage systems with excellent scalability and reliability.
