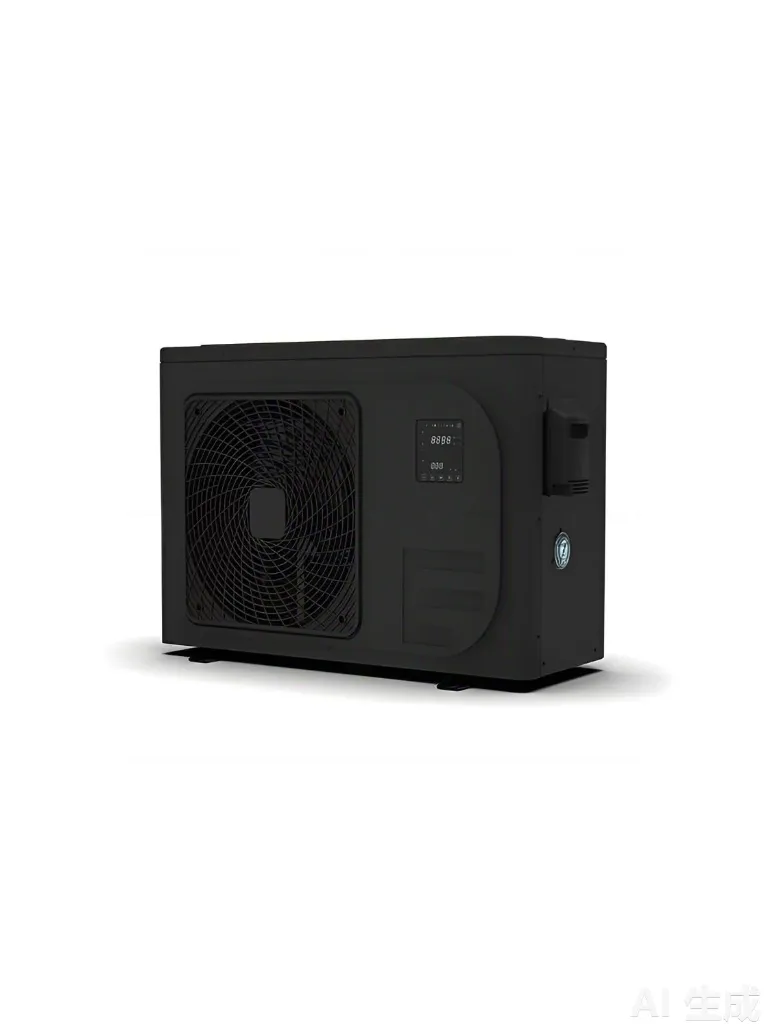

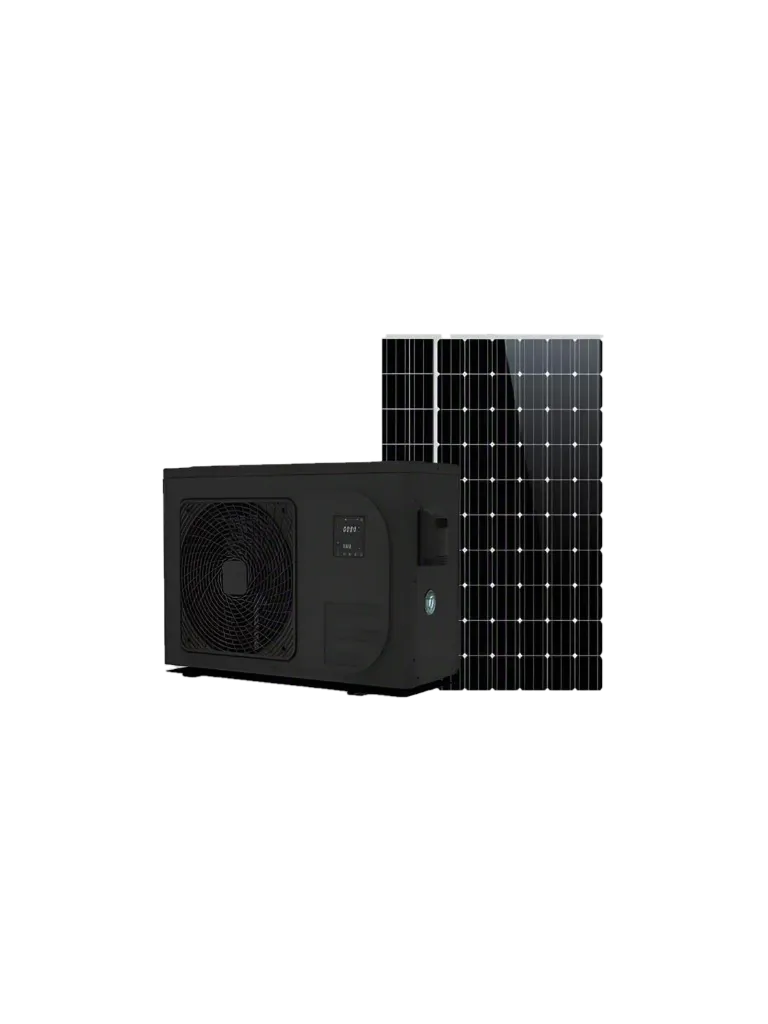

Deye DSPD1-ACDC-17R2 17kW Hybrid Solar Pool Heat Pump
The Deye DSPD1-ACDC-17R2 is a high-efficiency 17 kW hybrid AC/DC solar swimming pool heat pump designed for Australian residential and commercial pools and spas. It prioritises solar power while seamlessly switching to grid power when needed, delivering powerful heating and cooling with excellent energy efficiency.
Key Features & Benefits
- 17 kW heating capacity (hybrid solar + grid)
- Hybrid AC/DC power supply – prioritises solar energy
- High COP up to 16.0 for low running costs
- Full DC inverter technology for precise temperature control
- R32 environmentally friendly refrigerant
- Titanium heat exchanger for long life and corrosion resistance
- WiFi control and smart monitoring
- Quiet operation
- Suitable for both above-ground and in-ground pools
Technical Highlights
Parameter | Value |
|---|---|
Heating Capacity (27/24.3°C) | 2.4 – 17.0 kW |
COP (27/24.3°C) | 16.0 – 6.0 |
Cooling Capacity | 7.8 – 2.1 kW |
Solar PV Input Voltage | 80 – 380 V DC |
Grid Power Supply | 208 – 240 V AC, 50/60 Hz |
Max AC Input Current | 13.0 A |
Max DC Input Current | 12.0 A |
Refrigerant | R32 |
Protection Rating | IPX4 |
Net Weight | ≈ 50 kg |
Dimensions (L×W×H) | 995 × 432 × 633 mm |
Ideal for Australian pool owners wanting to maximise solar self-consumption while maintaining comfortable water temperatures year-round with minimal running costs.
Available now at PowerEase – Official Deye Golden Authorized Distributor for Australia & Oceania. Local stock, fast delivery and expert technical support.
