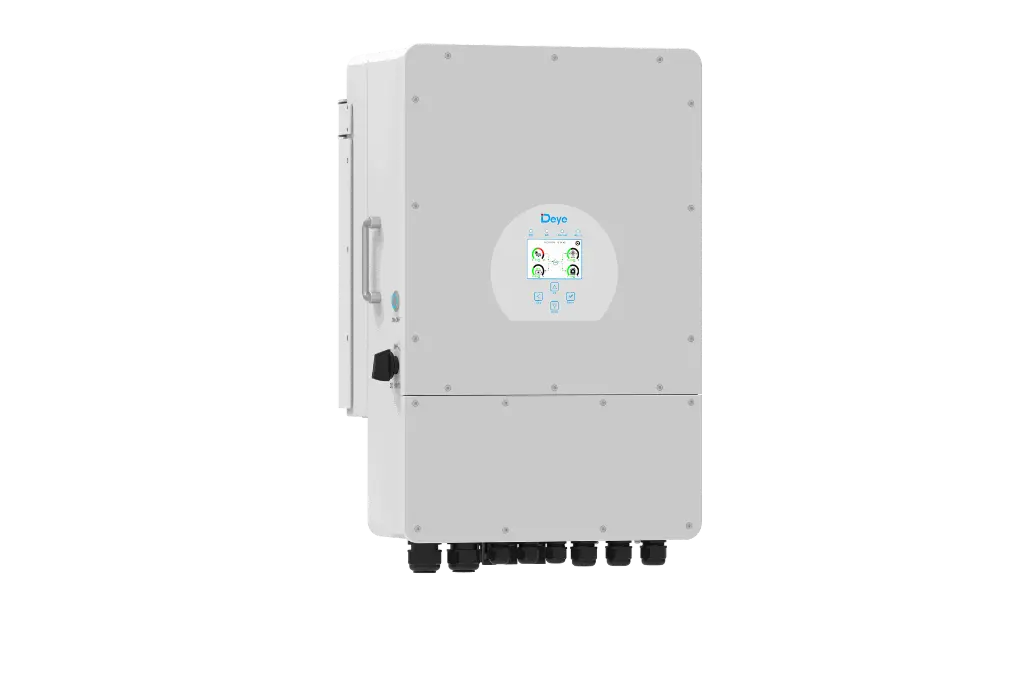

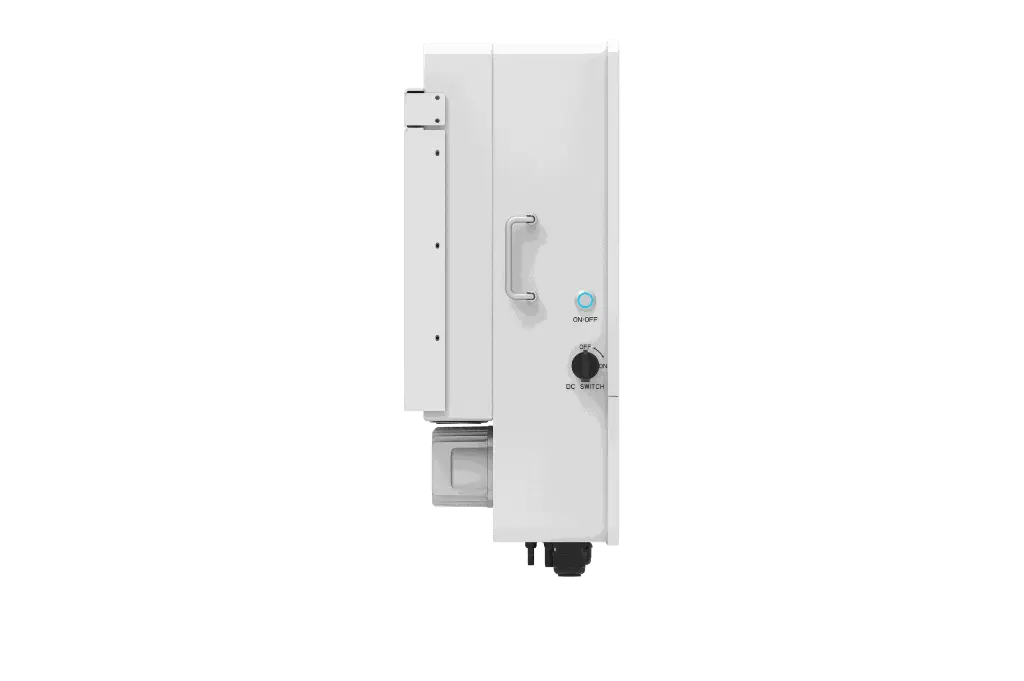

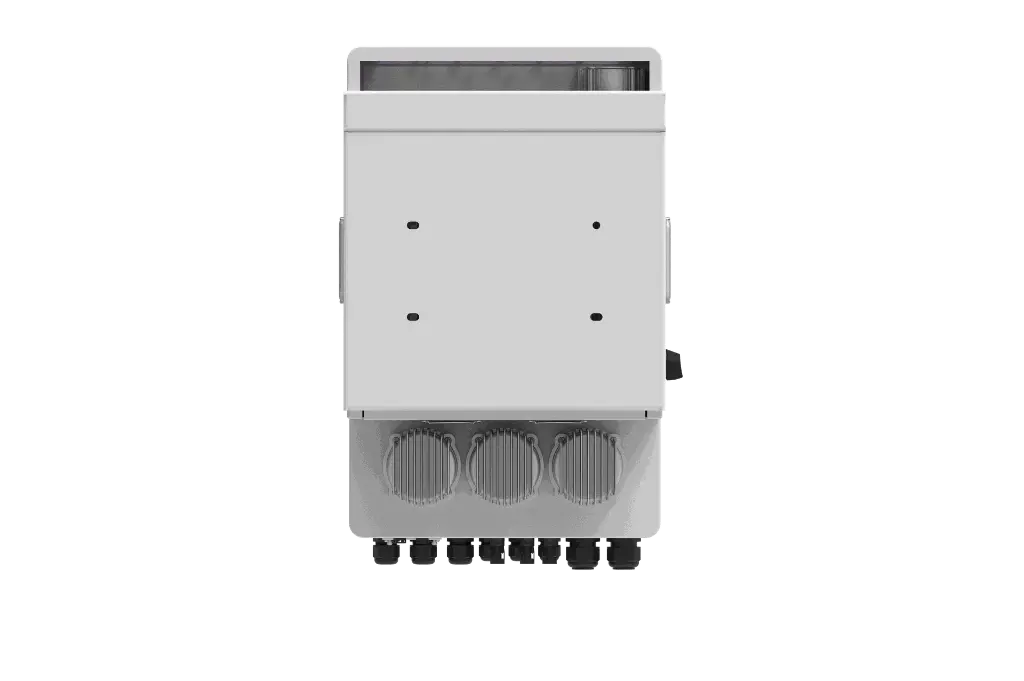

Deye SUN-5K-SG04LP3-AU 5kW Three-Phase Hybrid Inverter
The Deye SUN-5K-SG04LP3-AU is a high-performance 5 kW three-phase low-voltage hybrid inverter designed for Australian residential and small commercial solar + storage systems. It supports seamless on-grid, off-grid and backup operation with excellent efficiency and flexible battery compatibility.
Key Features & Benefits
- 5 kW three-phase hybrid inverter
- Compatible with 40–60 V low-voltage LiFePO4 or lead-acid batteries
- Dual MPPT solar inputs
- Max charge/discharge current: 120 A
- Supports diesel generator input
- Parallel operation (up to 16 units)
- IP65 outdoor-rated enclosure
- Smart monitoring and control via Deye Cloud App
- Max continuous AC passthrough current: 45 A
- 10-year warranty
Technical Highlights
Parameter | Value |
|---|---|
Rated AC Output Power | 5000 W |
Max AC Output Power | 5500 W |
Battery Voltage Range | 40 – 60 V |
Max Charge/Discharge Current | 120 A |
Max PV Input Power | 7500 W |
Max PV Input Voltage | 800 V |
MPPT Voltage Range | 200 – 650 V |
No. of MPPTs / Strings | 2 / 1+1 |
Max Efficiency | 97.60% |
Euro Efficiency | 97.00% |
Grid Connection | 3L + N + PE, 230/400 V |
Max Continuous AC Passthrough | 45 A |
Protection Rating | IP65 |
Operating Temperature | –40°C to +60°C |
Ideal for Australian three-phase homes seeking a reliable, expandable hybrid solar and battery solution.
Available now at PowerEase – Official Deye Golden Authorized Distributor for Australia & Oceania. Local stock, fast delivery and expert technical support.
